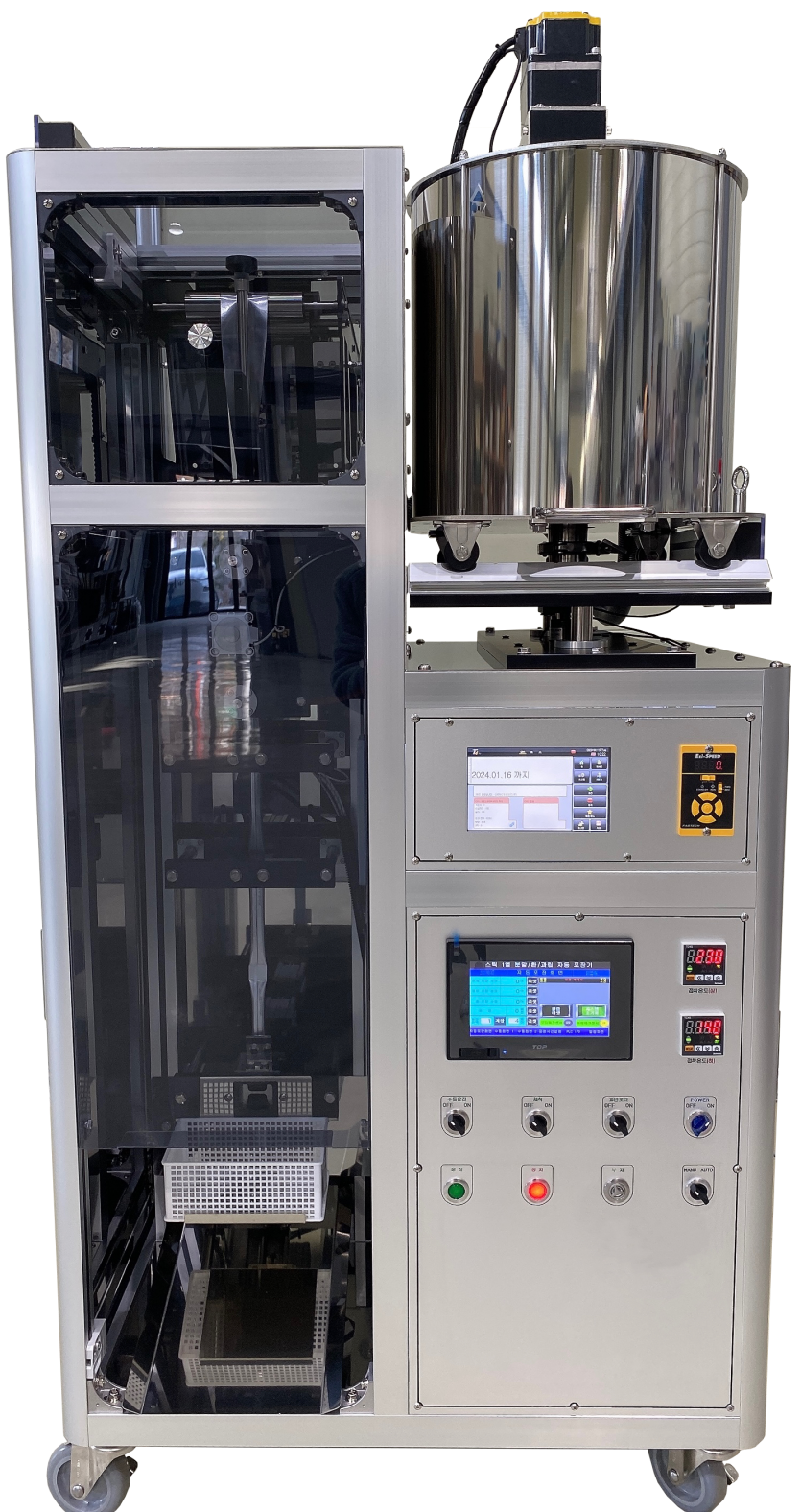

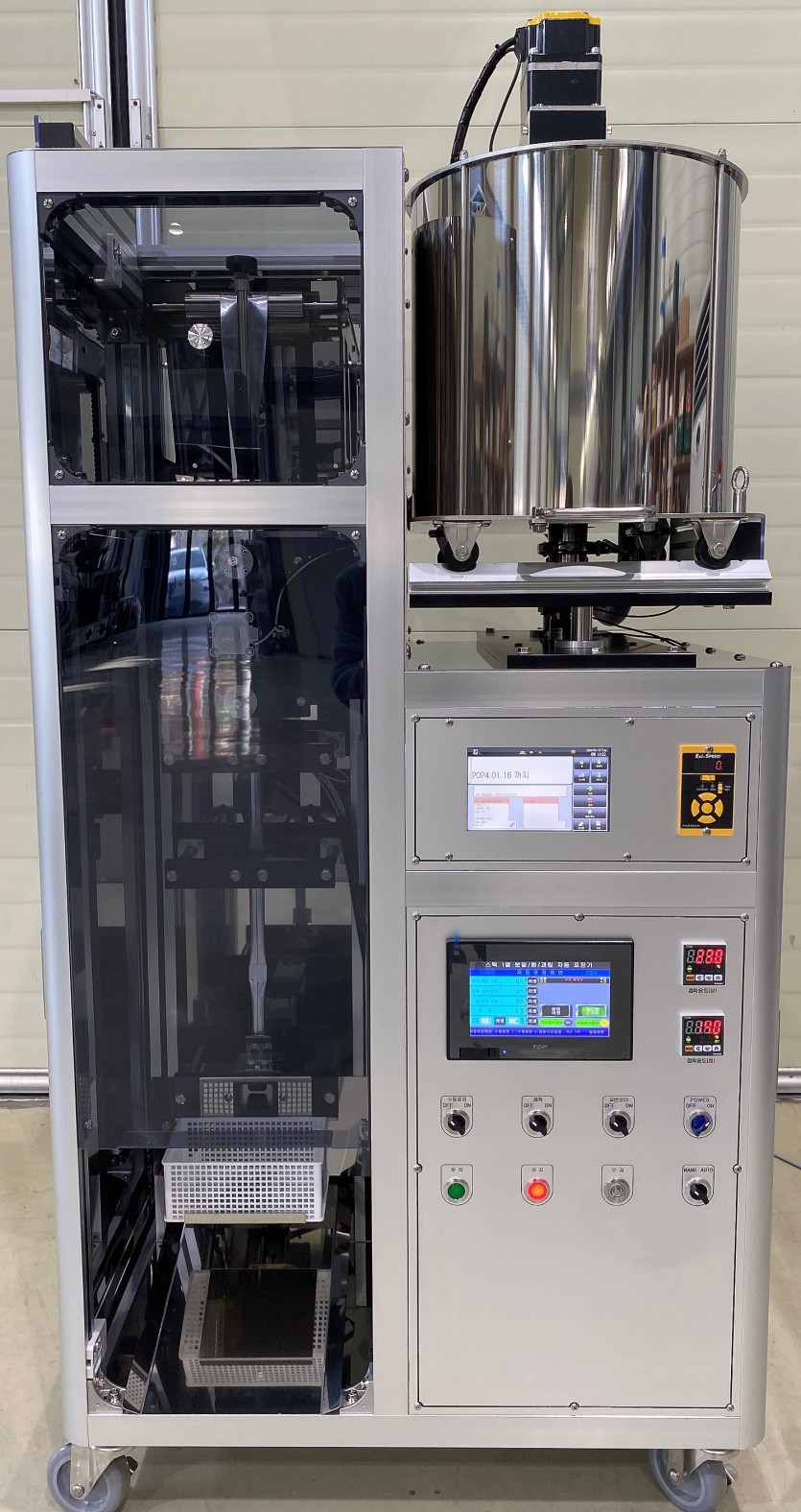

Model Name
SBP-091-01-1
Basic Specifications
· Check the alarm and message for each process.
· Setting the working conditions according to the product.
· Manual operation function by process.
· Currently, daily set quantity and total production quantity counters.
· HEATER open circuit alarm
· Storage hopper (25L dual hopper).
· Storage Hopper Insulation Dry Heat HEATER. (750 W)
· Rounder cutting 5R.
Work process
Primary Upper: Vertical Adhesion → Secondary Lower: Horizontal Adhesion and Cooling → Third Fall Transfer → Fourth Cutting
production capacity
16-18 packs/min (based on 5g)
<Features>
It has a compact design and slim shape, so it is good to install in small places.
<Production specifications by process>
A. FILLING DEVICE
* SCREW ROTATION QUANTIFICATION FILLING SYSTEM
* Medium capacity: 5g to 30g.
* Filling volume control: Invert screw rotation control.
* Materials used: AL6061, SUS304
B. SEALING DEVICE
* HEATING HEATING TYPE HEATING COMPRESSION SYSTEM.
Upper HEATER: %15 × 175 cm = 1 piece
Electricity: 220 V (400 W)
* HEATING HEATING TYPE HEATING COMPRESSION SYSTEM.
Lower HEATER: %15 × 50 cm = 2 pieces
Electricity: 220V (120W)
* Temperature control: Digital control.
* SEALING HITA MATERIAL BS (HEATER BODY).
C. Cutting and SEALING
* Cutting: 5R
SEALING: Width: 25–40 mm (optional), Length: 100–150 mm (adjustable).
D. Driving method
* pneumatic pressure
<CONTROL SYSTEM>
* Control Method: PLC + Touch Screen.
<Structure>
* FRAME: SUS304 (T5) and AL60 profiles.
Workpiece: SUS, and AL6061.
<Equipment Specification>
a. Full voltage: 220V / 60hz
b. Power consumption: 3.0Kw (Max)
c. Air pressure: 5–6 kg/cm₂
d. Equipment weight: 150 kg.
e. Equipment specification: 830 cm (L) × 830 cm (W) × 2250 cm (H)
<Main components (KS products)>
1. PLC - LS.
2. Touchscreen - LS.
3. AIR Cylinder - TPC.
